Hot-Pluggable ELTEK Rectiverter 3KVA 6KVA System for Data Center & ICT Infrastructure Critical Power Solutions

Name: HotPluggable ELTEK Rectiverter 3KVA 6KVA System for Data Center amp ICT Infrastructure Critical Power Solutions
Brand: ELTEK
Price: 2500 USD

China Hot-Pluggable ELTEK Rectiverter 3KVA 6KVA System for Data Center & ICT Infrastructure Critical Power Solutions wholesale

Model Number : CTOR0201.001

Product name : Rectiverter systems

Price : 2500 USD

Packaging Details : cartons

Input data : 185 - 275 VAC

Controller : Optional for the controller

Supply Ability : 200 sets per month

Power facotr : > 0.99 at 50% load or more / < 3.5%

Delivery Time : 8 weeks

DC current : 64 A / 90 A during overload (15s)

Rectiverter module : 242100.102

Place of Origin : CHINA

AC output voltage : 230 VAC / 200 - 240 VAC

MOQ : 1 set

DC output voltage : 53.5 VDC / 43 - 58 VDC

Payment Terms : D/A,T/T

Frequency : 47-53 & 57-63 Hz

Rectifier Module : 242100.100

Brand Name : ELTEK

Certification : CE

Contact Now

Hot-Pluggable ELTEK Rectiverter 3KVA 6KVA System for Data Center & ICT Infrastructure Critical Power Solutions

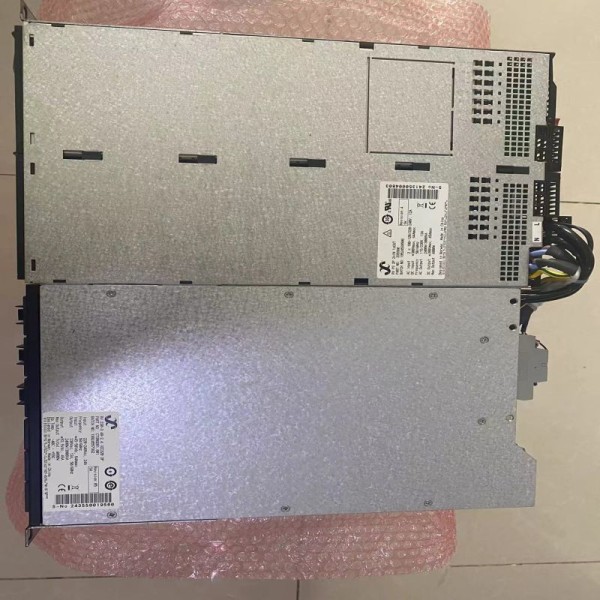

Eltek Rectiverter 1U 3kVA System (P/N: CTOR0201.001) is a compact 19-inch rack-mounted bidirectional converter delivering up to 3kVA AC (230V) & 2.4kW DC (48V)

output from a single 48VDC source or AC mains, featuring front-load breakers and IEC sockets for telecom, railway, and utility backup applications without an external controller.

What is the advantage of " Rectiverter CTOR0201.001 vs Standard Inverter + Rectifier ? "

A standard backup setup requires a rectifier (AC-DC) + inverter (DC-AC) + transfer switch = 2U~3U space. The CTOR0201.001 Rectiverter replaces this with a single 1U module handling bidirectional power (AC↔DC). It shares the same controller architecture as Eltek DC systems and supports parallel operation with Flatpack2 rectifiers. Result: 50% less rack space, fewer failure points, and simplified cabling for utility SCADA and railway signaling cabinets.

How to Select 1U 3kVA Rectiverter: CTOR0201.001 (230V) vs CTOR0201.004 (115V) ?

Selecting the right Rectiverter depends on regional AC standards:

CTOR0201.001: Default 230VAC (200-240V adj), 3kVA, 2400W DC, suited for Europe/Asia/Middle East telecom.
CTOR0201.004: Default 115VAC (100-127V adj), 1.5kVA, 1200W DC, suited for North America.

Both share the 48VDC (40-58V) input range and 1U 482x395x44mm form factor with front IEC sockets and load breakers. Ensure your 48V battery bank nominal voltage is 53.5V (typical) within the 43-58V adjustable DC output range.

Application in Railway :

Solving AC/DC Mixed Load Issues in Railway Signaling with Rectiverter 1U 3KVA system

Railway/metro trackside cabinets often host DC loads (relays, GSM-R radios at 48V) and AC loads (cameras, Wi-Fi, lighting at 230V). Installing two power shelves is costly and space-prohibitive. The CTOR0201.001 1U Rectiverter consolidates both. Its -40°C cold-start capability and IP20 rating suit outdoor enclosures. With 3x IEC front sockets, field technicians can plug AC diagnostics tools directly without extra PDUs, simplifying maintenance.

Parameters:

Technical Specifications: Eltek Rectiverter Integration/Standalone

Item	4 kW, 230 V System (CTOR0201.001)	2 kW, 115 V System (CTOR0201.004)
AC OUTPUT DATA
Voltage (default) / (adjustable range)	230 VAC / 200 - 240 VAC	115 VAC / 100 - 127 VAC
Frequency (default inverter mode)	50 Hz (adaptive)	60 Hz (adaptive)
Frequency (set-able inverter mode)	50Hz, 60Hz or last synced 50/60Hz (adaptive)	50Hz, 60Hz or last synced 50/60Hz (adaptive)
Power maximum (continuous / overload)	2400 W (3000 VA) / 4000 VA	1200 W (1500 VA) / 2000 VA
Current maximum (continuous / overload)	13 Arms / 17.4 Arms	13 Arms / 17.4 Arms
Current (maximum) Quick trip (20ms)	64 A (6 x nominal)	64 A (6 x nominal)
Hold up (Voltage dips)	5 ms	5 ms
THD	< 1.5% at resistive load	< 1.5% at resistive load
Output features	Fuse in L and N, Hot pluggable	Fuse in L and N, Hot pluggable
DC OUTPUT DATA
Voltage (default) / (adjustable range)	53.5 VDC / 43 - 58 VDC	53.5 VDC / 43 - 58 VDC
Power (maximum @nominal input)	2400 W	1200 W
Current (maximum @nominal output VDC)	50 A	25 A
Hold up time (max output power)	>10ms; Vout > 41 VDC	>10ms; Vout > 41 VDC
Output features	Short circuit proof, Overvoltage Shutdown	Short circuit proof, Overvoltage Shutdown
INPUT DATA
AC Mains Input Voltage (single phase)	185 - 275 VAC	95 - 140 VAC
AC Current (@nominal output voltage)	14 - 24 Arms	14 - 24 Arms
Frequency (default sync range)	47-53 & 57-63 Hz	57-63 & 47-53 Hz
Power Factor / THD	> 0.99 at 50% load or more / < 3.5%	> 0.99 at 50% load or more / < 3.5%
DC Voltage nominal / extended range	45 - 58 VDC / 40 - 45 VDC	45 - 58 VDC / 40 - 45 VDC
DC Current (maximum)	64 A / 90 A during overload (15s)	32 A / 45 A during overload (15s)
OTHER SPECIFICATION
Support for controller (RJ45)	Smartpack2, Smartpack S & Compack	Smartpack2, Smartpack S & Compack
Efficiency	>96% (mains mode), >94% (inverter mode)	>96% (mains mode), >94% (inverter mode)
2 pole AC distribution	3pc, 10A, IEC320-C13 sockets	3pc, 10A, IEC320-C13 sockets
Protection Class	IP 20	IP 20
Operating temperature	-40 to +55°C (-40 to +131°F)	-40 to +55°C (-40 to +131°F)
Storage temperature	-40 to +85°C (-40 to +185°F)	-40 to +85°C (-40 to +185°F)
Dimensions [WxDxH]	482 x 395 x 44mm (1U)	482 x 395 x 44mm (1U)
Weight	6kg (13 lbs)	6kg (13 lbs)
